Product Overview

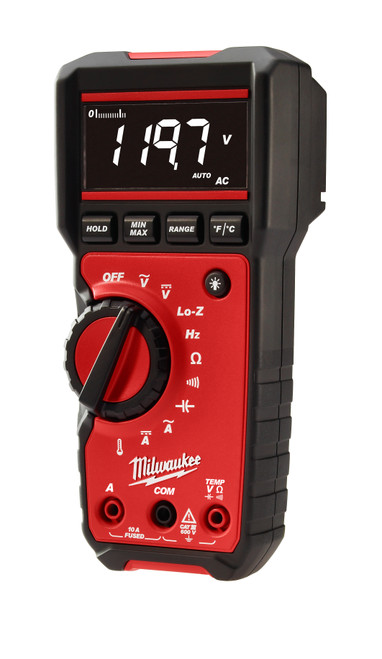

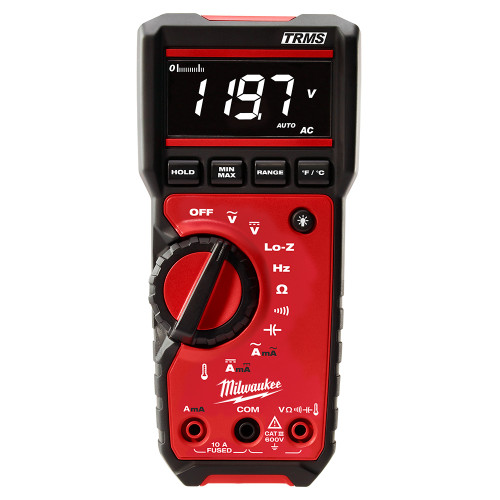

The Milwaukee True RMS Multimeter is a heavy duty meter for professional residential, commercial and industrial applications. The perfect tool for professional electricians, the 2217-20 offers functionality users expect with features that make doing the job easier. The 2217-20 True RMS Multimeter features a large white on black display for clearer readings, a slide rail system to add proprietary accessories and rugged over-molding for increased durability and grip. The meter is rated to CATIII 600V and meets UL safety specifications required by electrical users. This meter is covered by Milwaukee’s 5-Year Warranty.
Specifications
| TRMS | Yes |
|---|---|
| Safety Category Rating | CAT III 600V |
| Voltage AC/DC | 600V |
| Lo-Z | Yes |
| Frequency | 10 Hz - 50.00 kHz |
| Resistance | 40MΩ |
| Continuity | Audible |
| Capacitance | 1,000μF |
| Current AC/DC | 10.00A |
| Contact Temperature | -40° F to 752° F (-40° C to 400° C) |
| Backlight | Yes |
| Display Type | White on Black LCD |
| HOLD/MIN/MAX | Yes |
| Bargraph | Yes |
| Rugged Overmolding | Yes |
| Accessory Attachment | Magnetic Meter Holder |
| Tool Warranty | 5 Years |
| Battery Type | Alkaline (AA) |
| Calibration Needed | Yes - Recommend calibration service once every year |
| Switch Type | Dial |
| Length | 6-1/2" |
