Product Overview

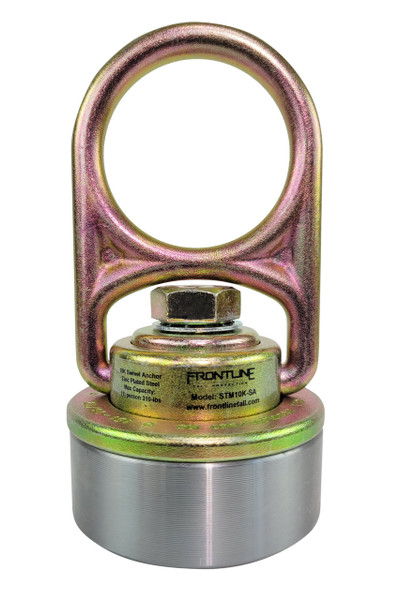

The anchor incorporates a revolutionary swivel ring design that allows a D-ring to rotate 360 degrees as well as flip back and forth at 180 degrees. The Swivel Anchors incredible strength is due to a heavy gauge heat treated alloy steel, reinforced bridge, D-ring, and locking caps. Its patent pending key lock design keeps the D-ring seated and locked into its swivel housing, preventing the steel from spreading outward during heavy loads.The Weld Puck Kit is a weld on mount for Frontlines 10K Swivel Steel Anchors. The anchor is of mild carbon steel and a grade 8 5/8-11 bolt and internal lock washer are included in the kit.Features:Anchor Rotates 360 and pivots 180 side-to-side conveniently helping avoid side loading or accidental disengagementCan be used for permanent and temporary installations supported for steelAnchor can be used for single user anchoring point or in combination with other approved anchor as part as a temporary horizontal lifeline systemMaterials:Includes 3" x 1" Puck with 5/8" threaded holeIncludes 5/8" x 4" Plated Grade 8 Bolt and NutWeld-on Puck Unplated Mild SteelFasteners Zinc Plated Steel, Grade 8Specs and Standards:Tensile Strength: 10,000 lbsANSI Max User Capacity: 130 to 310 lbsOSHA Max User Capacity: 130 to 425 lbsMeets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1926.502, OSHA 1910.66
