Product Overview

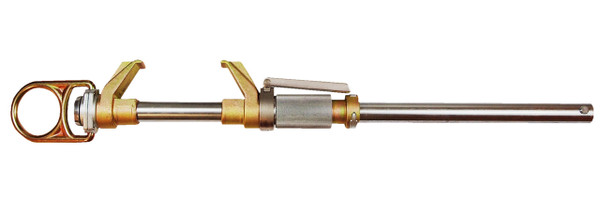

Frontline ST14V Vertical / Horizontal Fixed Beam Anchor for 4" - 14" Wide I-BeamsThe Frontline Vertical/Horizontal Beam Anchor is a fixed I-beam anchor that is easy to operate and designed to clamp onto a vertical or horizontal I-beam to create a fixed anchor point.Suitable for a single user connection, the I-beam clamp can be used with either a self retracting lifeline or a shock absorbing lanyard. The beam anchor can fit I-beams from 4" wide and adjust up to 14" wide I-beams.Extremely rugged, compact in size and its lightweight design makes the beam clamp convenient and a reliable steel anchoring point and it can be set-up within seconds without the use of tools.Features:The fixed beam anchor is built tough, rugged and corrosion resistantThe anchor can be conveniently used in steel beams or columns in a horizontal or vertical positionBeam Flange Width Range: 4 - 14Beam Flange Thickness: 0.25 - 1.25Components:Zinc Plated Steel Swivel D-RingZinc Plated Steel Support BarZinc Plated Steel Flange HooksStainless Steel D-Ring MountSpecs and Standards:Static Tensile Strength: 5,000-lbf/22kNUser Maximum Capacity: 310 lbsProduct Weight: 6.8 lbsMeets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
