Product Overview

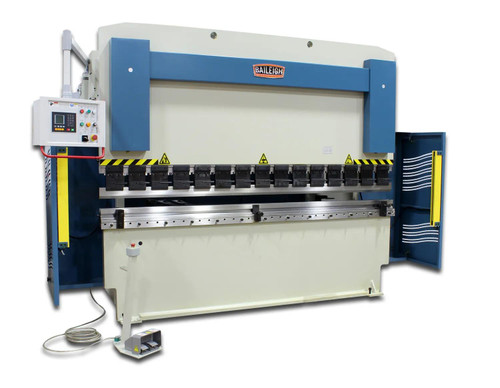

To bend 10' metal sheets, this industrial press brake uses a durable Vickers/Eaton pump. Anyone can learn to program the controller. The rigid steel frame maintains accuracy and delivers a whopping 224 tons of pressure, and offers 13' length (157 inches) and 123 inches of distance between the housings (also available in a 10' version). The BP-22413CNC runs on 220-volt 3-phase power, and features an industrial-grade hydraulic system with a Vickers/Eaton pump will keep the machine running smoothly and reliably. A torque tube connects the two hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times. Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer. Hydraulic cylinders are near the back of the machine for convenient fluid changes.
An accurate, user-friendly control system runs in single-bend mode or programmable mode, and comes standard with two axes of control: stroke and backgauge distance. The controller is so simple that you could train someone to use it in 5 minutes, and the programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production. Bending is accurate to +/- .01mm, ensuring that parts come out right the first time. Main electrical components are made in Germany by Weidmueller and Schneider will give you years of trouble-free productivity.
Foot pedal brings the stroke up and down (just input your specs on the controller, then press the pedal for each bend). You can make a complete part without touching the controller (push the metal in while pressing the foot pedal). Choose between two speeds: a rapid approach and retract and a slow bending speed. The speed option lets you reduce cycle time and make your shop more efficient. Chain drive backgauge system uses tried-and-true technology that you can maintain easily, and the 23.62" backgauge can advance or retract according to programmed instructions.
Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process, and weighs a whopping 24,640 pounds for massive structural strength that ensures accurate results. The included support arms are approximately two feet in length. Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style). Quick-release tool holders let you make changes easily (just open a lever and it drops the top die out (no time-consuming cap screws!)). A crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across. Safety light curtains prevent the machine from bending when someone is too close, and swing open and out of the way when you're doing a tool change.
This hydraulic press brake ships fully assembled (just uncrate it, plug it in, and get started). We keep machine handling to a minimum to reduce the risk of damage (the flatbed truck that leaves our facilities is the one that shows up at your door). Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly. This press brake features a one-year parts warranty. With lifetime technical support by phone, you can call us any time and speak with service reps who have years of experience with industrial machinery.
Questions? Not sure which combination machine is right for you? Contact us and talk to a Baileigh expert.
