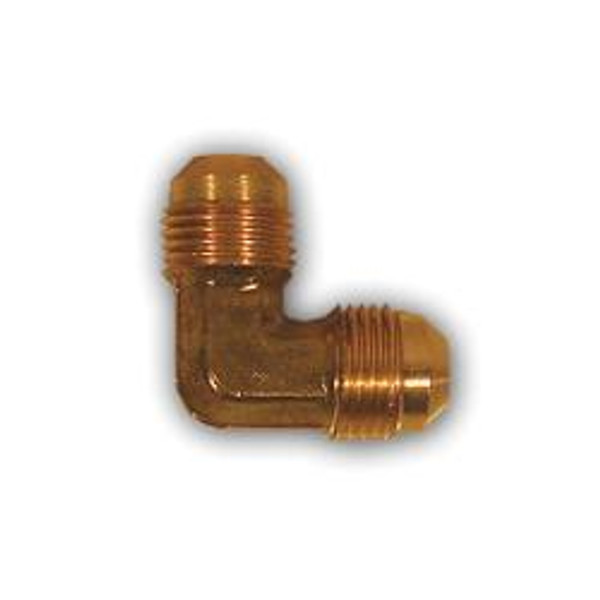

Mid-America Fittings 255X4 90 deg Barstock Elbow, 1/4 in SAE 45 deg Male Flared x 1/4 in SAE 45 deg Male Flared, Brass

MID-AMERICA FITTINGS 90 deg Barstock Elbow, Connection Size 1: 1/4 in, Connection Type 1: SAE 45 deg Male Flared, Connection Size 2: 1/4 in, Connection Type 2: SAE 45 deg Male Flared, Brass, 7/16-20 UNF Thread, For Use With: Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared, 1400 psi, -65 to 250 deg F, Additional Information: 0.03 in Tube Wall Thickness, 0.81 in Center to End
